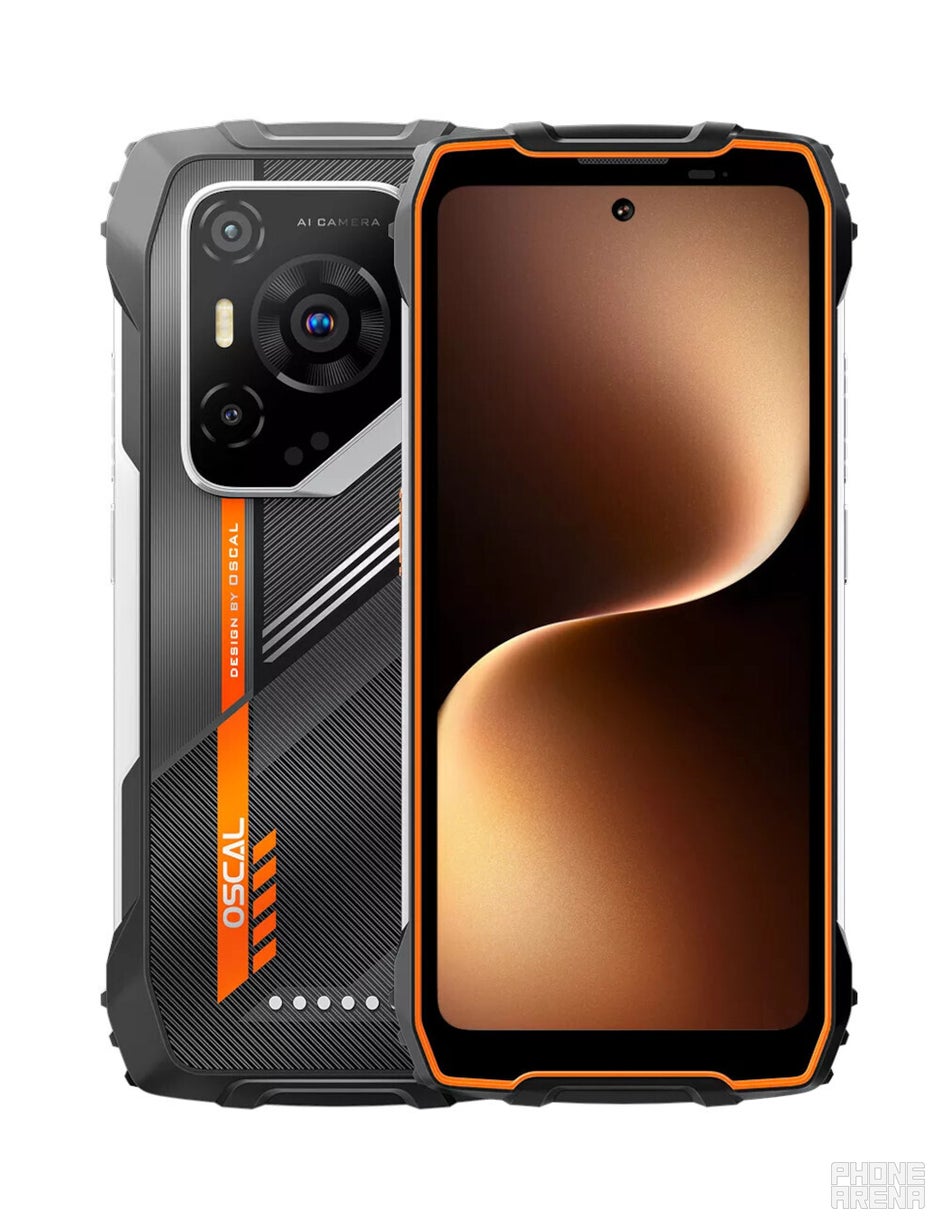

OSCAL PILOT 3 Full Specifications
Latest News
Design |
|
|---|---|
| Dimensions |
7.17 x 3.39 x 0.57 inches 182.2 x 86 x 14.5 mm |
| Weight | 12.59 oz (357.0 g) |
| Resistance | Water, Dust; IP69K; MIL-STD-810 certified |
| Biometrics | Fingerprint (touch) |
| Keys | Right: Volume control, Lock/Unlock key |
| Colors | Black, Orange |
Display |
|
|---|---|
| Size | 6.8-inch, 69.61% screen-to-body |
| Type | IPS LCD, 120Hz, 750 nits |
| Resolution | 2460x1080px, 20:9 ratio, 396 PPI |
Hardware |
|
|---|---|
| System chip | MediaTek Dimensity 6300 MT6835 (6 nm) |
| Processor |
Octa-core 2x2.4GHz Cortex-A76 6x2.0GHz Cortex-A55 |
| GPU | Mali-G57 MC2 |
| Memory | 12GB (LPDDR4X)/256GB (UFS 2.2) |
| Storage expansion | microSDXC up to 1024 GB |
| OS | Android (15) |
Battery |
|
|---|---|
| Type | 7500 mAh |
| Charge speed | Wired: 33.0W |
Camera |
|
|---|---|
| Rear | Triple camera |
| Main camera |
50 MP Aperture size: F1.8 Sensor size: 1/2.76" |
| Second camera |
20 MP (Night vision sensor) Sensor size: 1/2.8" |
| Third camera | 2 MP (Depth information) |
| Flash | LED |
| Video recording | Yes |
| Front | 32 MP |
Connectivity & Features |
|
|---|---|
| Bluetooth | 5.2 |
| WLAN |
a,b,g,n,ac Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac |
| USB | Type-C |
| Sensors | Accelerometer, Gyroscope, Compass, Ambient light sensor, Proximity sensor |
| Location | GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, Cell ID, Wi-Fi positioning |
| Other | NFC |
Multimedia |
|
|---|---|
| Headphones | 3.5mm jack |
| Speakers | Earpiece, Multiple speakers |
| Screen mirroring | Wireless screen share |
| Radio | FM, Stereo, RDS |
| Additional microphone(s) | Noise cancellation |
Cellular |
|
|---|---|
| 5G Bands | n1, n3, n5, n7, n8, n20, n28, n30, n38, n40, n41, n77, n78, n79 |
| 4G (FDD) Bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 66 |
| 4G (TDD) Bands | 34, 38, 39, 40, 41 |
| 3G Bands | 1, 2, 4, 5, 8 |
| Data Speed | LTE-A, HSDPA+ (4G) 42.2 Mbit/s |
| Dual SIM | Yes |
| SIM type | Nano SIM |
